Installation

BERGHOCH - create security yourself

True to our motto create security yourself our systems are designed for self-assembly. Plug and play Mount cameras, connect cables, set distributors and connect the HDDVR recording device.
This page gives you an overview of how to connect our wired network and wireless wifi systems.

5 / 8MP system - cameras connected by cables

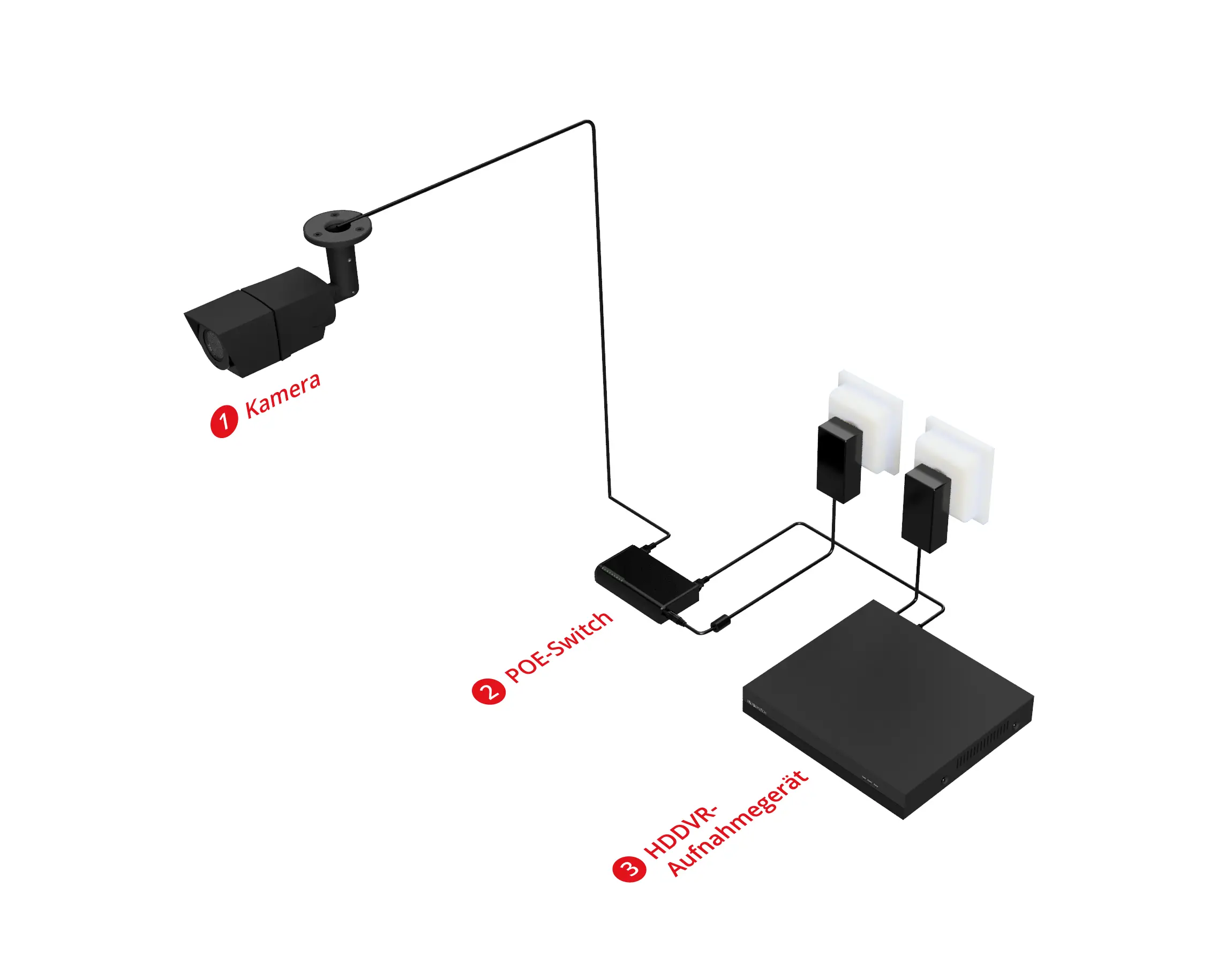

Connection self-sufficient - without an Internet router (required for remote access via APP) The cameras are connected with a standard network cable and receive the power via the supplied POE switch (2). An extra power supply for the cameras is not necessary. The maximum cable length is 100 meters per camera.

The POE switch is connected to the camera (1) and the HDDVR recording device (3) via a network cable. The monitor is connected to the HDDVR recording device via HDMI or VGA. Standard PC monitors or televisions fit. Several POE switches can also be used as distribution points. More information in our assembly instructions.

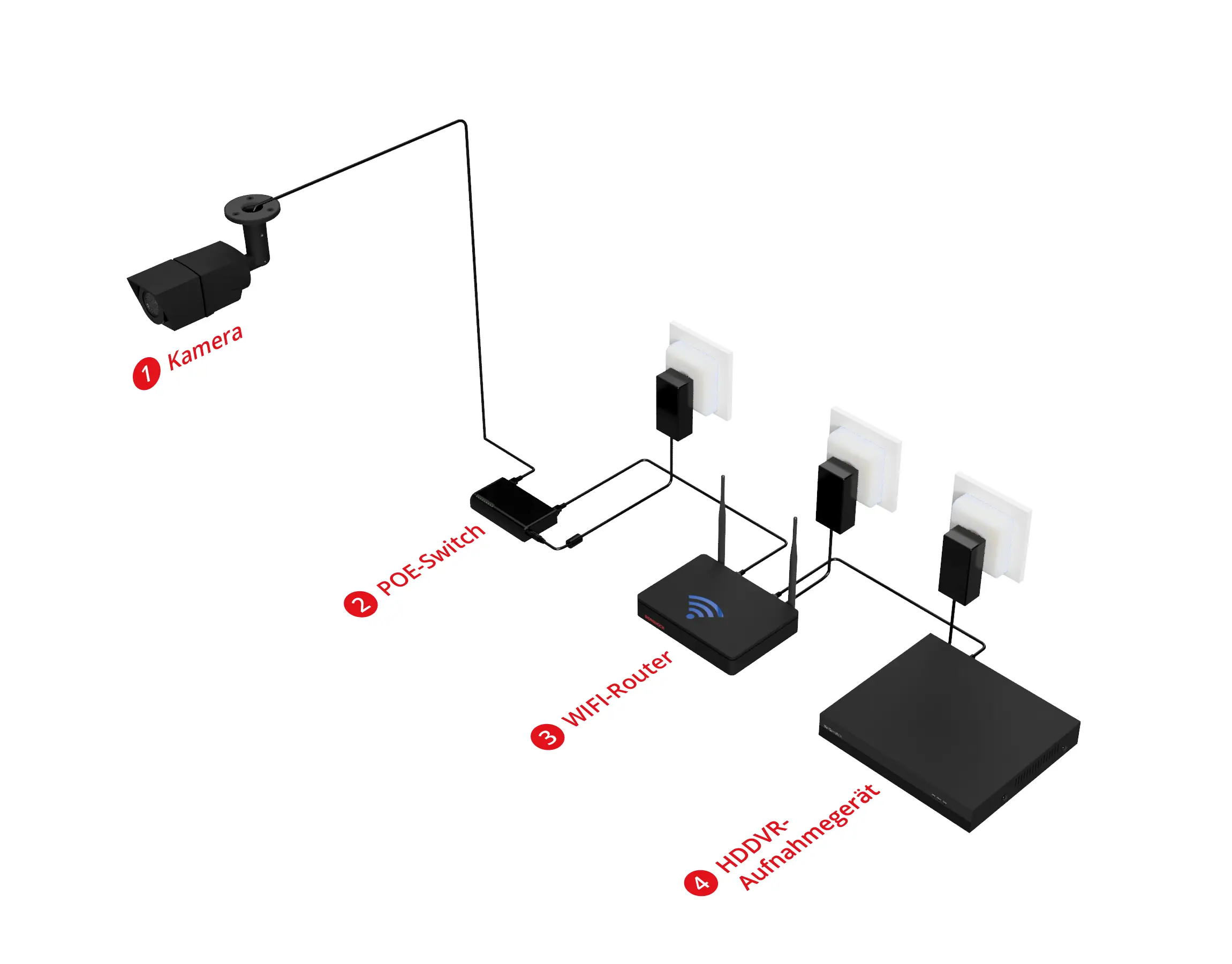

Connection with internet router The cameras are connected with a standard network cable and receive the power via the supplied POE switch (2). An extra power supply for the cameras is not necessary. The maximum cable length is 100 meters per camera.

The POE switch is connected to the camera (1) and the WIFI router (3) via a network cable. The second network cable connects the HDDVR recording device (4) to the WIFI router (3). The monitor is connected to the HDDVR recording device via HDMI or VGA. Standard PC monitors or televisions fit. Several POE switches can also be used as distribution points. More information in our assembly instructions.

Which is better wired or wifi !?

We generally recommend the wired solution via POE (power and video via a cable). If this is not possible, we have a wide range of wireless solutions for you.

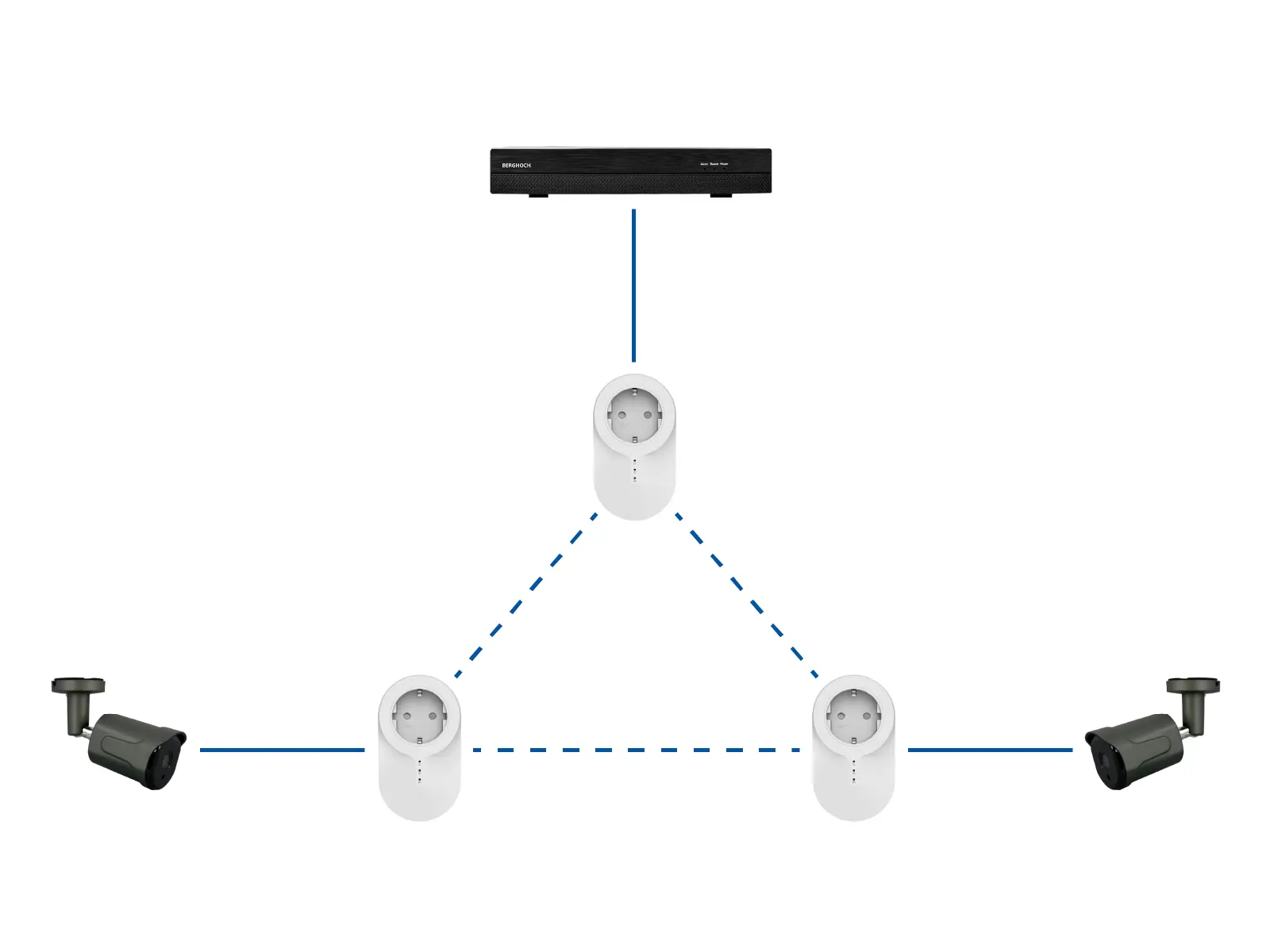

5MP Wireless - Cordless for large buildings / areas

  • Camera system with recording device
  • Up to 16 cameras (5MP)
  • Intended for large-scale houses, commercial units and land with an electricity meter
  • 3x wireless power adapter included

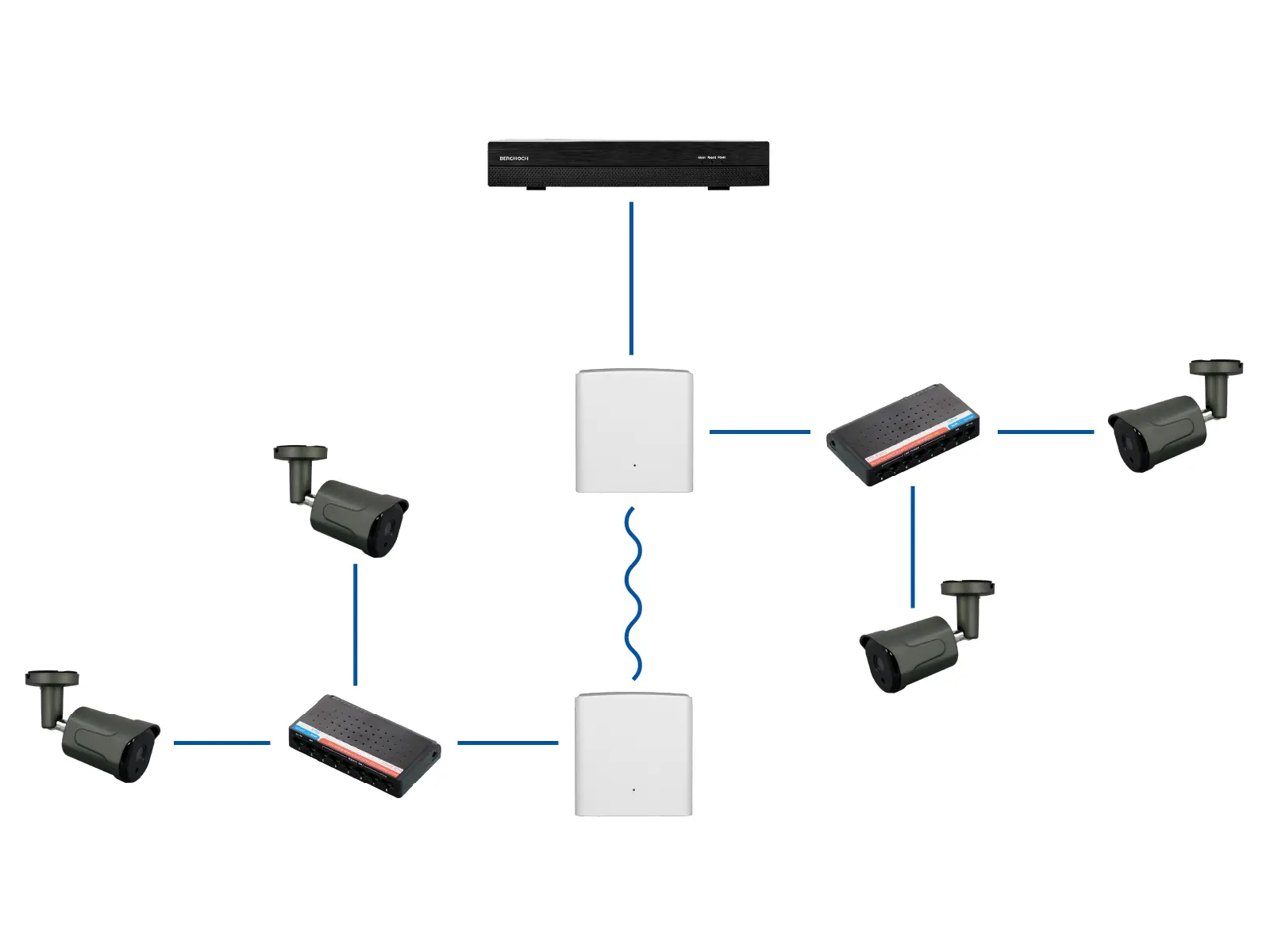

5MP Funk Hybrid - Cordless for large buildings / areas

  • Camera system with recording device
  • Up to 16 cameras (5MP)
  • Intended for large-scale houses, commercial units and land
  • 3x wifi transmitter / receiver included
  • Expandable up to 7 receivers up to 1000 m²

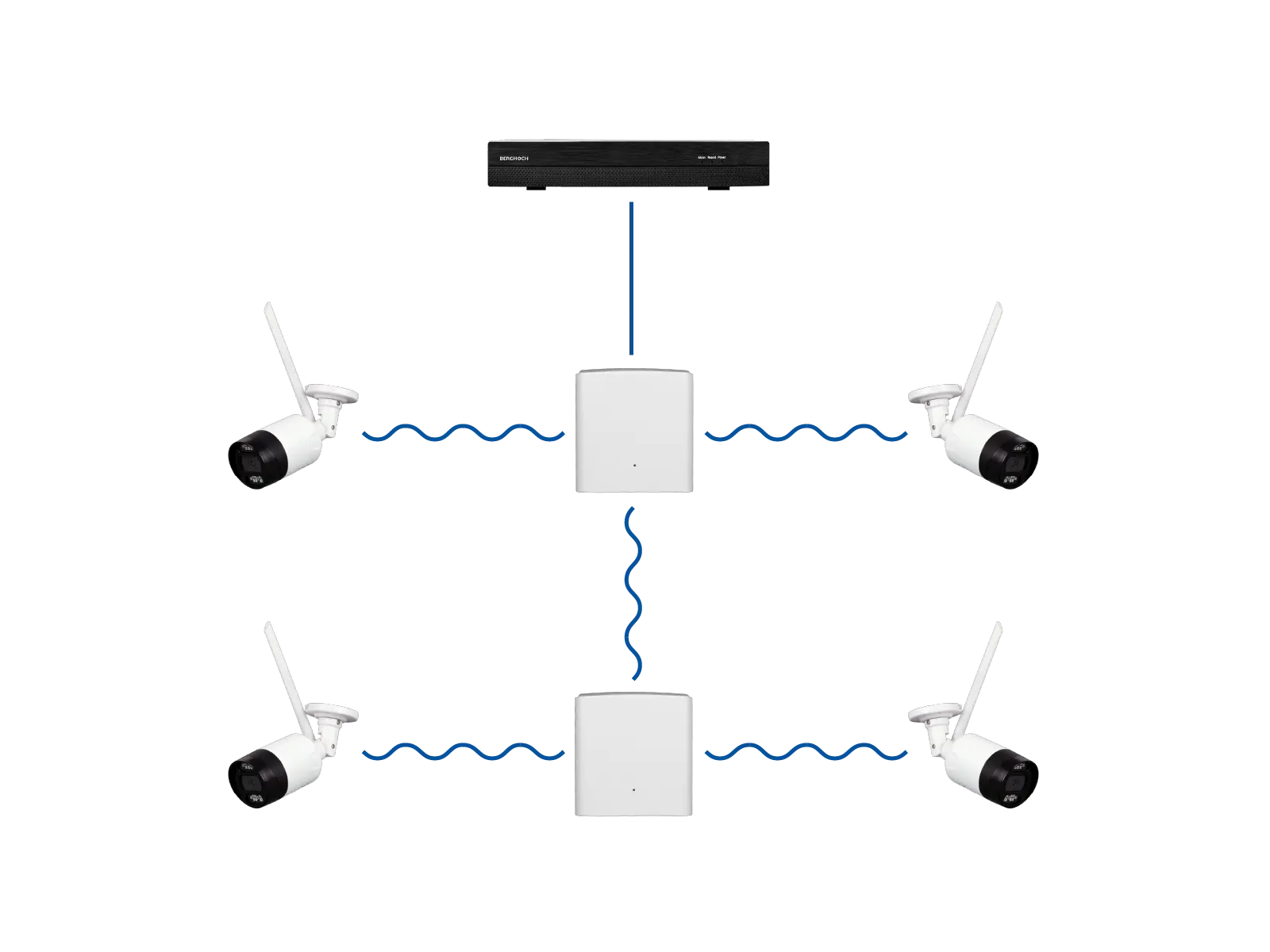

5MP WLAN - Cameras cordless over a WiFi mesh

  • Camera system with recording device
  • Up to 8 cameras (5MP)
  • Recording device for connection to a monitor or with built-in 12 "monitor
  • Funk range can be extended with WiFi cube

3MP Funk HD – Kameras schnurlos verbunden

  • Camera system with recording device
  • Bis zu 8 Kameras (3MP)
  • Recording device for connection to a monitor or with built-in 12 "monitor
  • 1TP5 range can be expanded with amplifiers
