Connecting - Video Surveillance

1.) new system
& old cameras

When combining a new system with old cameras, you only have to POE injector (outlet) use. This is because old cameras have a connection for power and data. Therefore the signal of the new system has to be disconnected first.

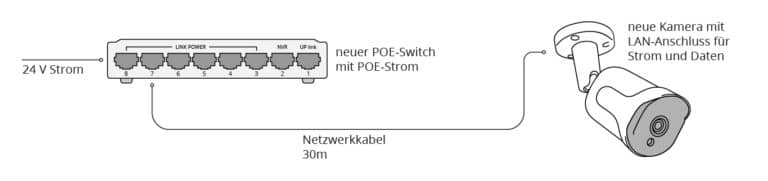

2.) new system
& new cameras

When combining a new system with our new cameras, you do not have to use a POE injector. This is due to the fact that a POE switch is used in new systems, which directly supplies the power for the cameras via its network ports.

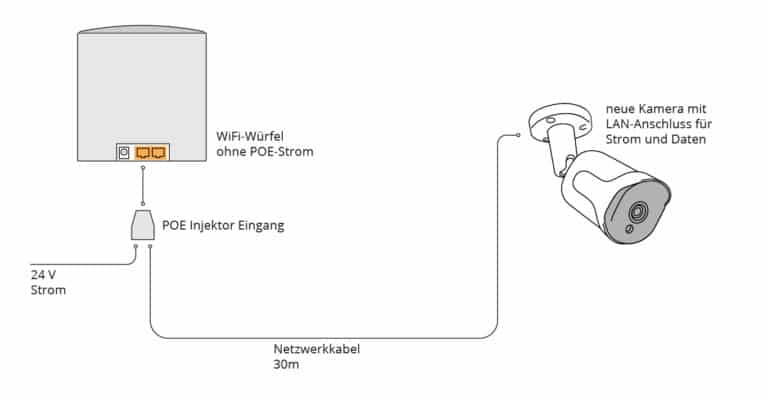

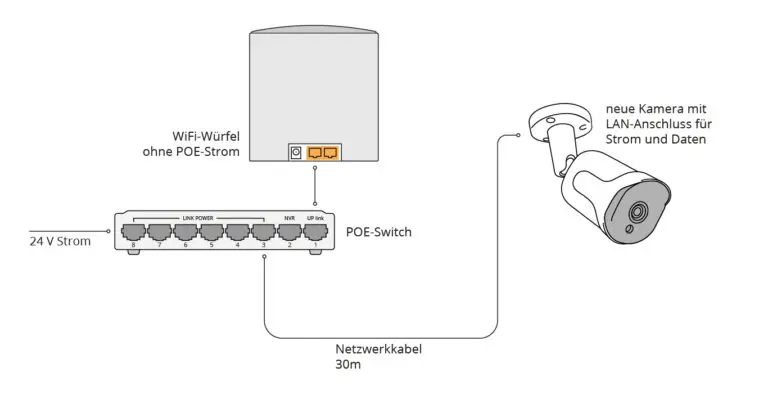

3.) WiFi repeater or cube
& BERGHOCH cameras

A WiFi cube can only transmit one data signal. Therefore, the power for the cameras has to be with one POE injector (input) or one POE switch be fed.

It should be a 24 volt power supply be used.

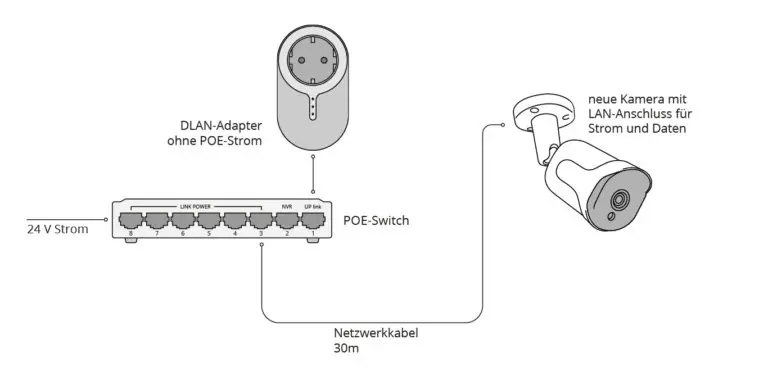

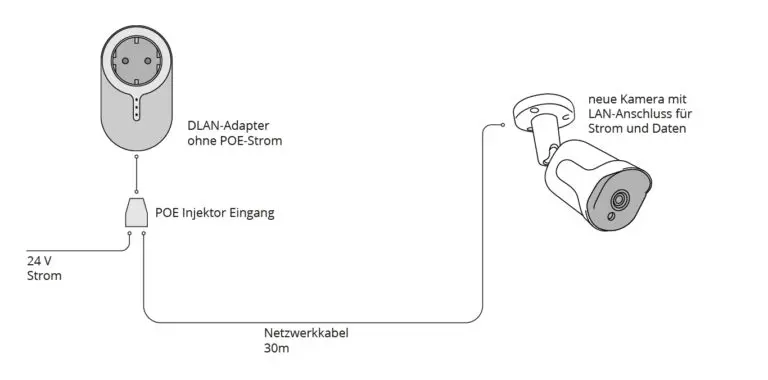

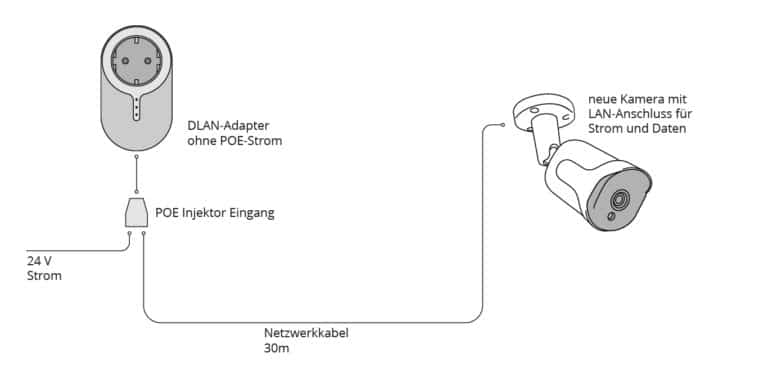

4.) Powerline adapter
& BERGHOCH cameras

Like a WiFi cube, a DLAN adapter can only transmit one data signal. Therefore, the power for the cameras has to be with one POE injector (input) or one POE switch be fed.

It should be a 24 volt power supply be used.

5.) old system
& old cameras

When combining an old system and old cameras, you have to use one as usual POE injector (input) and one POE injector (outlet) use.

It should be a 24 volt power supply be used.

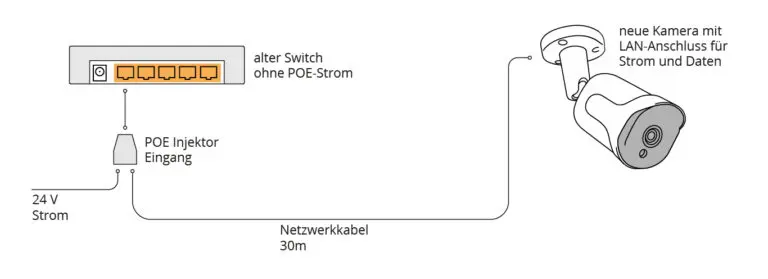

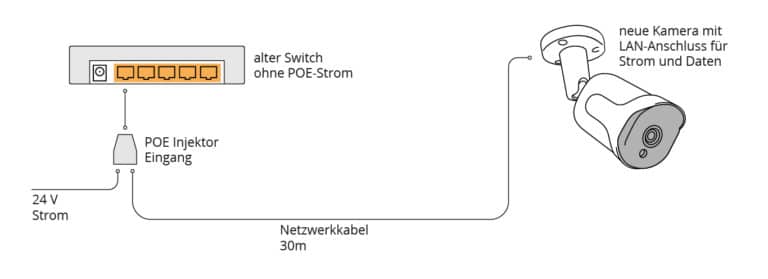

6.) old system
& new cameras

When combining an old system with our new cameras, all you have to do is POE injector (input) use. This is because new cameras only use one network connection for data and power.

It should be a 24 volt power supply be used.
