BERGHOCH | Hybrid IP 2-wire | door intercom | B-TF100 | sets | 4x indoor monitor
1.099,90 €
incl. VAT Free Shipping

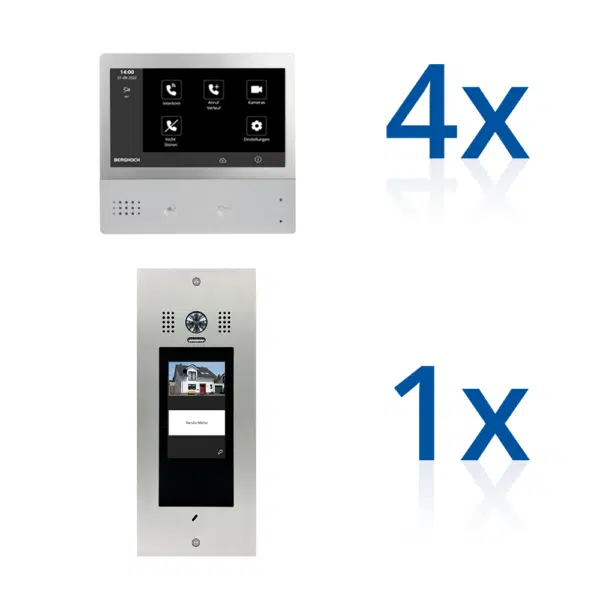

Scope of Delivery
(1x) BERGHOCH | door station | B-TF100
(4x) BERGHOCH | indoor monitor| B-M100
(1x) Doorphone user manual
Lieferzeit: 1-2 Tage*
Availability: Available
1 Month Right of Withdrawal
Scope of Delivery
(1x) BERGHOCH | door station | B-TF100
(4x) BERGHOCH | indoor monitor| B-M100
(1x) Doorphone user manual
IP video intercom
All in one - outdoor station & IP cameras
From one or two family houses, office complexes to multi-family houses. Up to 256 residents in one system. Easy to install via network cable, power supply via network cable by POE. Integration of up to 4x IP cameras from BERGHOCH. Never miss a visitor, forwarding to your own APP.
Connection of the monitor via POE network or WLAN.
Flexible connection via network
also for large projects up to 256 residents
Connection of the outdoor units via POE network cable. The indoor monitor can be connected via POE network or WLAN. An outdoor unit or monitor can be connected up to 100m via a network cable.
or existing 2-wire line
Ideal for existing buildings if there is no network cable to the outside
Connection of the outdoor units via an existing 2-wire bell system. The indoor monitor can be connected via POE network or WLAN. An outdoor unit or monitor can be connected up to 100m via a 2-wire cable/network cable.
Touch outdoor station with 5" IPS display (12.7 cm)
Can be used flexibly from a single-family home to a residential complex
Mode 1 to 4 Family house incl. own picture Apartment house up to 256 residents In addition, several outdoor units can be combined
Power supply via POE network cable, connection of the indoor monitors via network cable or WLAN.
Outdoor station with bell button and nameplate
Camera module 720P HD with up to four bell buttons.
Power supply and connection via POE network cable or 2-wire, connection of the indoor monitors via network cable or WLAN.
Detached house and front door
Solution for a party or as an additional bell
The single bell is ideal for a single-family house or larger apartment buildings as a doorbell solution right in front of the front door. Connection via POE network, the doorbell only needs a network cable.
Never miss a visitor
Connection via APP and forwarding of calls
Don't miss any visitors and talk live to the person on your doorstep via your phone. There are no additional or monthly costs for the APP.
Easy to use via touch
simple menu navigation and operation
You can control all settings via the touch display menus. You do not need a computer or smartphone for the settings. Optionally, you can use the APP to talk live with your visitors.
A good picture day and night
built-in LEDs and WDR for a good picture at night
720P camera for a good picture day & night, light correction via WDR and LEDs for illuminated night vision.
| Weight | 3,1 kg |
|---|---|
| version | POE IP network, 2-wire system |
Data Sheet
| Türsprechanlage B-TF100 |
|---|
|
Flush mounting |
|
720P Wide Angle Fisheye Camera |
|
Front panel made of stainless steel |
|
5 inch (12.7 cm) TFT monitor (800 x 480 pixels) |
|
Touchscreen operation (5 mm armored glass) |
|
RJ45 PoE power supply |
|
Access control with RFID card |
|
Password access control with touch keyboard |
|
Dimensions 316 x 133 x 46mm |
|
Degree of protection IP 65
|
| Türsprechanlage Innenmonitor B-M100 |
|---|
|
7 inch (17.8 cm) IPS TFT, viewing angle (1024 x 600 pixels) |
|
Touchscreen operation |
|
full duplex communication |
|
Wifi for wireless connection to the router |
|
Shortcut/favorite setting |
|
Supports SIP call forwarding to mobile phone |
|
Picture-in-picture view |
|
Integration of up to 4x IP network cameras from BERGHOCH |
|
German and English menu |
|
RJ45 POE power supply |
|
Dimensions 165 (H) × 240 (W) × 39 (D) mm |
